Transforming Concepts into Scalable, Manufacturable Solutions
Lianglite boasts an experienced technical team. We collaborate closely with our partners throughout the entire product development lifecycle, providing comprehensive support spanning conceptualization, design, mass production, and after-sales service. We help our customers accelerate time-to-market, mitigate production risks, and achieve long-term cost efficiency.
5‑23W Non‑Dimmable CC LED Driver
Basic Specifications
Input Voltage: 160-250VAC
Output Current: 6.25A
Output Voltage: 24-42VDC
Output Power: 4-23W
Efficiency: 96%
Dimensions (mm): 85×23×22
Product Feature
Surge Protection: 4KV
Constant‑Current Mode
High PF & High Efficiency
Operates at -20°C ~ +50°C
Protections: Overload, Over‑current, Short‑circuit
CE Certified & RoHS Compliant
Applications
Suitable for indoor LED luminaires
36W 900mA Non‑Dimmable CC LED Driver
Basic Specifications
Input Voltage: 160-250VAC
Output Current: 0.9A
Output Voltage: 30-48VDC
Output Power: 36W
Efficiency: 95%
Dimensions (mm): 115×41×22
Product Feature
Surge Protection: 4KV
Constant‑Current Mode
High PF & High Efficiency
Operates at -20°C ~ +50°C
Protections: Overload, Over‑current, Short‑circuit
CE Certified & RoHS Compliant
Applications
Suitable for indoor LED luminaires
50W 1200mA Non‑Dimmable CC LED Driver
Basic Specifications
Input Voltage: 160-250VAC
Output Current: 1.2A
Output Voltage: 25-40VDC
Output Power: 50W
Efficiency: 92%
Dimensions (mm): 145×36×33
Product Feature
Surge Protection: 4KV
Constant‑Current Mode
High PF & High Efficiency
Operates at -20°C ~ +50°C
Protections: Overload, Over‑current, Short‑circuit
CE Certified & RoHS Compliant
Applications
Suitable for indoor LED luminaires
65W 200‑350mA Non‑Dimmable CC LED Driver
Basic Specifications
Input Voltage: 160-250VAC
Output Current: 200-350mA
Output Voltage: 120-185VDC
Output Power: 65W
Efficiency: 92%
Dimensions (mm): 125×28×18
Product Feature
Surge Protection: 4KV
Constant‑Current Mode
High PF & High Efficiency
Operates at -20°C ~ +50°C
Protections: Overload, Over‑current, Short‑circuit
CE Certified & RoHS Compliant
Applications
Suitable for indoor LED luminaires
12V 150W Non‑Dimmable Constant‑Voltage LED Driver
Basic Specifications
Input Voltage: 160-250VAC
Output Current: 12.5A
Output Voltage: 12VDC
Output Power: 150W
Efficiency: 96%
Dimensions (mm): 315×28×19
Product Feature
Surge Protection: 6KV
Single‑channel CV Output
Compact, High‑efficiency, Long Lifespan
Operates at -20°C ~ +50°C
Protections: Overload, Over‑current, Short‑circuit
CE Certified & RoHS Compliant
Applications
Suitable for indoor LED luminaires.
24V 150W Non‑Dimmable Constant‑Voltage LED Driver
Basic Specifications
Input Voltage: 220‑240VAC
Output Current: 6.25A
Output Voltage: 24VDC
Output Power: 150W
Efficiency: 96%
Dimensions (mm): 315×28×19
Product Feature
Surge Protection: 6KV
Single‑channel CV Output
Compact, High‑efficiency, Long Lifespan
Operates at -20°C ~ +50°C
Protections: Overload, Over‑current, Short‑circuit
CE Certified & RoHS Compliant
Applications
Suitable for indoor LED luminaires.
36V 320W Non‑Dimmable Constant‑Voltage LED Driver
Basic Specifications
Input Voltage: 160-250VAC
Output Current: 8.8A
Output Voltage: 36VDC
Output Power: 320W
Efficiency: 96%
Dimensions (mm): 315×28×19
Product Feature
Surge Protection: 6KV
Single‑channel CV Output
Compact, High‑efficiency, Long Lifespan
Operates at -20°C ~ +50°C
Protections: Overload, Over‑current, Short‑circuit
CE Certified & RoHS Compliant
Applications
Suitable for indoor LED luminaires.
48V 240W Non‑Dimmable Constant‑Voltage LED Driver
Basic Specifications
Input Voltage: 160-250VAC
Output Current: 5A
Output Voltage: 48VDC
Output Power: 240W
Efficiency: 96%
Dimensions (mm): 315×28×19
Product Feature
Surge Protection: 6KV
Single‑channel CV Output
Compact, High‑efficiency, Long Lifespan
Operates at -20°C ~ +50°C
Protections: Overload, Over‑current, Short‑circuit
CE Certified & RoHS Compliant
Applications
Suitable for indoor LED luminaires.

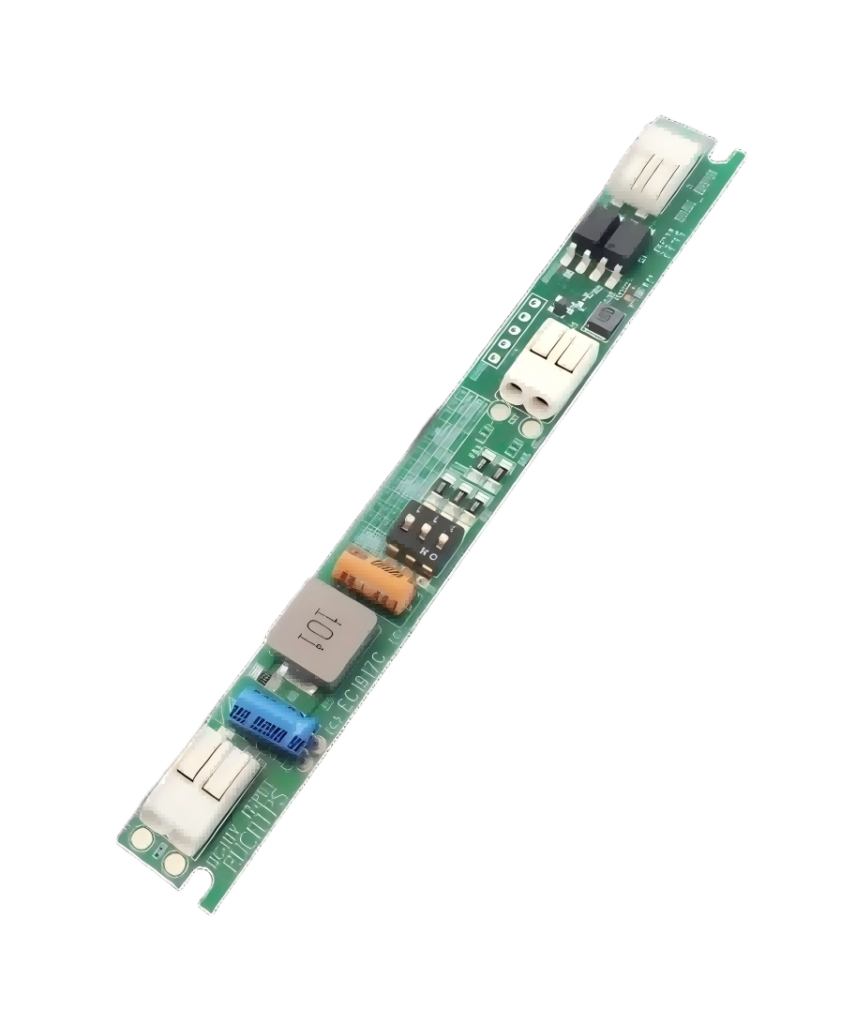

28W DALI‑Dimmable Track Light LED Driver
Basic Specifications
Input Voltage: 42V-52VDC
Output Current: 350-700mA
Output Voltage: 48V
Output Power: 28W
Efficiency: 97%
Dimensions (mm): 118×12×9
Product Feature
Surge Protection: 4kV
Output Current: 350‑700mA, adjustable via DIP switch
Compliant with DALI‑2.0 standard protocol
Hybrid PWM+CCR dimming, flicker‑free
Protections: Short‑circuit, Overload, No‑load, Reverse Input Polarity
Hot‑swap input supported
Applications
Suitable for Magnetic Track Light Series
28W 350‑700mA Constant‑Current Dimmable LED Driver
Basic Specifications
Input Voltage: 45V-51VDC
Output Current: 350-700mA
Output Voltage: 9-40VDC
Output Power: 28W
Efficiency: 97%
Dimensions (mm): 118×12×9
Product Feature
Surge Protection: 4kV
Output current adjustable via DIP switch
Hybrid PWM+CCR dimming, flicker‑free
Protections: Short‑circuit, Overload, No‑load, Reverse Input Polarity
Supports 3‑in‑1 analog dimming signal
Hot‑swap input supported
Applications
Suitable for Magnetic Track Light Series
48W 2‑Channel DALI‑Dimmable Track Light LED Driver
Basic Specifications
Input Voltage: 24-48VDC
Output Current: 1A
Output Voltage: 24-48VDC
Output Power: 48W
Efficiency: 97%
Dimensions (mm): 118×12×9
Product Feature
Surge Protection: 4kV
Dual‑channel constant‑voltage output, max. 1A
Compliant with DALI standard protocol
Hybrid PWM+CCR dimming, flicker‑free
Protections: Short‑circuit, Overload, No‑load, Reverse Input Polarity
Built‑in driver
Applications
Suitable for Magnetic Track Light Series
300W 500‑1400mA DALI‑Dimmable CC LED Driver
Basic Specifications
Input Voltage: 160-250VAC
Output Current: 500-1400mA
Output Voltage: 100-250VDC
Output Power: 300W
Efficiency: 97%
Dimensions (mm): 125×28×18
Product Feature
Surge Protection: 6kV
Output current adjustable via DALI software
Compliant with DALI standard IEC62386
Supports Touch‑DIM function
Operates at -20°C ~ +50°C
Protections: Overload, Short‑circuit, Over‑voltage
Applications
Suitable for indoor LED luminaires
600W 48V CV DALI‑Dimmable LED Driver
Basic Specifications
Input Voltage: 160-250VAC
Output Current: 12.5A
Output Voltage: 48VDC
Output Power: 600W
Efficiency: 97%
Dimensions (mm): 251*121*48
Product Feature
Surge Protection: 10kV
Output current adjustable via DALI software
Compliant with DALI standard IEC62386
Wide‑voltage input with active PFC
Operates at -20°C ~ +50°C
Ultra‑thin design, IP67 waterproof rating
Applications
Suitable for constant‑voltage LED lighting, such as LED modules, light strips and bar lights.
12W 120‑350mA DALI/0‑10V Constant‑Current Dimmable LED Driver
Basic Specifications
Input Voltage: 160-250VAC
Output Current: 120-350mA
Output Voltage: 9-45V
Output Power: 12W
Efficiency: 98%
Dimensions (mm): 150*43*29
Product Feature
Surge Protection: 4kV
Output current level selectable via DIP switch
Compliant with DALI standard IEC62386
Supports touch‑dimming (button dimming) and 0/1‑10V dimming functions
Operates at -20°C ~ +50°C
Dimming range: 0.1‑100%, smooth dimming effect, flicker‑free
Applications
Suitable for indoor LED lighting applications, such as downlights, spotlights, panel lights, etc.
40W 24V Constant‑Voltage DALI & 1‑10V Dimmable LED Driver
Basic Specifications
Input Voltage: 160-250VAC
Output Current: 1.66A
Output Voltage: 24VDC
Output Power: 40W
Efficiency: 92%
Dimensions (mm): 175*33*28
Product Feature
Surge Protection: 4kV
Compliant with DALI standard IEC62386 & DALI‑2.0
Dimming range: 0.1%‑100%, smooth dimming without stepping or flicker
Built‑in PFC chip for improved energy efficiency
5‑in‑1 dimming: DALI‑2.0, Push‑DIM, 0/1‑10V, PWM signal, adjustable resistor
Dimming range: 0.1‑100%, smooth dimming effect, flicker‑free
Applications
Suitable for indoor LED lighting applications, such as downlights, spotlights, panel lights, etc.
120W 400‑600mA 0‑10V Constant‑Current Dimmable LED Driver
Basic Specifications
Input Voltage: 160-340VAC
Output Current: 0.4-0.6A
Output Voltage: 180-260VDC
Output Power: 120W
Efficiency: 97%
Dimensions (mm): 131*51*33
Product Feature
Surge Protection: 6kV
Supports 3‑in‑1 dimming: 0‑10V / PWM / Resistor
Output current adjustable via potentiometer
Supports external DIP switch and external daylight sensor switch
Operates normally at -20°C ~ +50°C
Protection functions: Input undervoltage, output short‑circuit, overvoltage and overtemperature protection
Applications
Suitable for indoor LED lighting applications
200W 12V 1‑10V Constant‑Voltage Dimmable LED Driver, 5‑in‑1 Dimming
Basic Specifications
Input Voltage: 160-340VAC
Output Current: 16.7A
Output Voltage: 12VDC
Output Power: 200W
Efficiency: 97%
Dimensions (mm): 300*45*45
Product Feature
Surge Protection: 6kV
Supports multiple dimming methods (DALI, 1‑10V active signal, adjustable resistor, PWM, Touch‑DIM)
Built‑in active PFC
Smooth dimming curve without flicker or jitter
Operates normally at -20°C ~ +50°C
Protection functions: Input undervoltage, output short‑circuit, overvoltage and overtemperature protection
Applications
Suitable for indoor LED lighting applications
40W 750‑1100mA Dimmable & Color‑Tunable LED Driver
Basic Specifications
Input Voltage: 160-300VAC
Output Current: 750-1100mA
Output Voltage: 9-45V
Output Power: 40W
Efficiency: 97%
Dimensions (mm): 170*30*28
Product Feature
Surge Protection: 6kV
Dual‑channel constant‑current output with multi‑level current options
Built‑in active PFC
Smooth dimming curve without jitter
Operates normally at -20°C ~ +50°C
Protection functions: Input undervoltage, output short‑circuit, overvoltage and overtemperature protection
Applications
Suitable for indoor LED lighting applications
75W 24VDC Constant‑Voltage Dimmable CCT‑Tunable LED Driver, 2‑Channel Dimming
Basic Specifications
Input Voltage: 160-300VAC
Output Current: 3.125A
Output Voltage: 24VDC
Output Power: 75W
Efficiency: 97%
Dimensions (mm): 290*40*28
Product Feature
Surge Protection: 6kV
Dual‑channel constant‑current output with multi‑level current options
Built‑in active PFC
Smooth dimming curve without jitter
Operates normally at -20°C ~ +50°C
Protection functions: Input undervoltage, output short‑circuit, overvoltage and overtemperature protection
Applications
Suitable for indoor LED lighting applications
