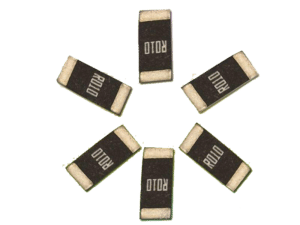

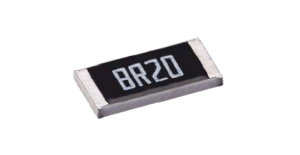

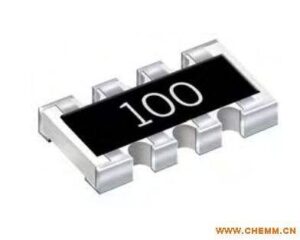

Chip Resistor
SMD resistor, also known as chip fixed resistor, is a type of metal glaze resistor.
It is made by mixing metal powder and glass glaze powder and printing it onto a substrate using screen printing.
It is resistant to moisture and high temperature, with a low temperature coefficient.
It greatly saves circuit space cost and enables more refined circuit design.
It is made by mixing metal powder and glass glaze powder and printing it onto a substrate using screen printing.
It is resistant to moisture and high temperature, with a low temperature coefficient.
It greatly saves circuit space cost and enables more refined circuit design.
- Small size and light weight
- Suitable for reflow soldering and wave soldering
- Stable electrical performance and high reliability
- Low assembly cost, compatible with automatic placement equipment
- High mechanical strength and excellent high-frequency characteristics
Relationship Between SMD Resistor Package and Power Rating
The relationship between SMD resistor package and power is shown below:
表格
| Imperial (mil) | Metric (mm) | Rated Power @ 70°C | Boosted Power Series | Max. Working Voltage (V) |
|---|---|---|---|---|
| 0201 | 0603 | 1/20 W | — | 25 |
| 0402 | 1005 | 1/16 W | — | 50 |
| 0603 | 1608 | 1/16 W | 1/10 W | 50 |
| 0805 | 2012 | 1/10 W | 1/8 W | 150 |
| 1206 | 3216 | 1/8 W | 1/4 W | 200 |
| 1210 | 3225 | 1/4 W | 1/3 W | 200 |
| 1812 | 4832 | 1/2 W | — | 200 |
| 2010 | 5025 | 1/2 W | 3/4 W | 200 |
| 2512 | 6432 | 1 W | — | 200 |
Note: The actual operating voltage shall be the smaller value between (where ) and the maximum working voltage.
